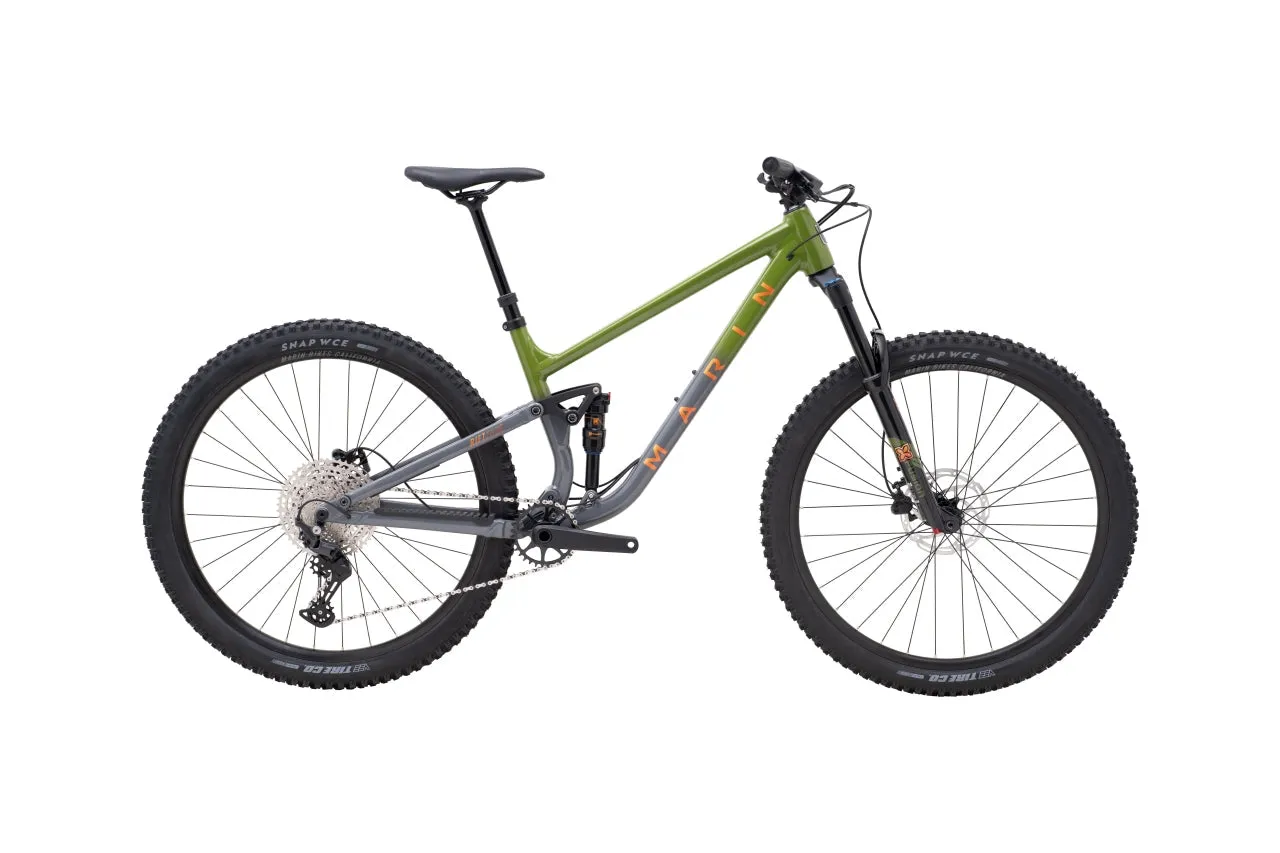

Specifications
Please note - specifications subject to change without prior notice.
| FRAME | Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
| FORK | X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| SHOCK | X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom |
| RIMS | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| HUB REAR | Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body |
| HUB FRONT | Shimano HF-MT400B, 110x15mm, Centerlock |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible |
| DERAILLEUR REAR | Shimano Deore, 11-Speed, SGS |
| DERAILLEUR FRONT | - |
| SHIFT LEVER | Shimano Deore, 11-Speed, SL-5100R |
| CRANKSET | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| BOTTOM BRACKET | External Sealed Cartridge Bearing |
| CHAIN | KMC X-11 Silver and Black |
| CASSETTE | Sunrace, 11-Speed, 11-51T, ED Black |
| BRAKES FRONT | Tektro HD-M280 Hydraulic, 180mm Rotor |
| BRAKES REAR | Tektro HD-M280 Hydraulic, 180mm Rotor |
| BRAKE LEVERS | Tektro HD-M280 |
| HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| STEM | Marin 3D Forged Alloy, 35mm |
| GRIPS | Marin MTN, Closed End |
| HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| SEATPOST | X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm |
| SADDLE | Marin Speed Concept |
| PEDALS | - |
| EXTRAS | Closed 9-12 Thru-Axle Bolt On System |
